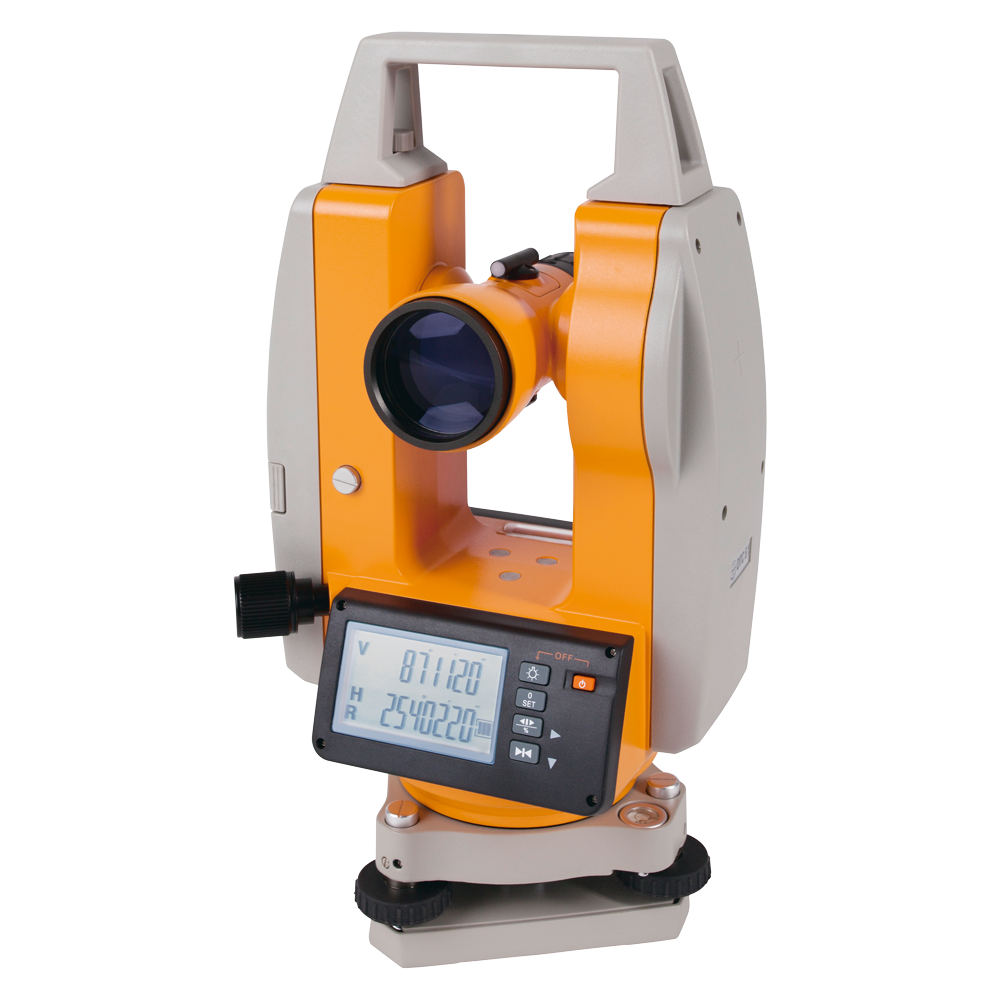

DTC 5.1
DIGITAL Construction Theodolite
The powerful Theis digital theodolite was made for multiple measurements for the qualified construction worker.
To the inquiry listTheis Theodolites product brochure
Gallery
Details
-
- 2-angle compensator
- Laser plummet
- Optical finder
-
- Alignment work
- Angle measurement
-
- Protective case
- Accu/Charger
Specification
Telescope
| Magnification | 30 x |
| Ø Objective | 45 mm |
| Field of view | 1° 30’ |
| Shortest focus distance | 1.3 m |
| Resolving power | 3“ |
Angle Measurement
| Method | Absoluteness |
| Minimum reading | 1“/ 5“ |
| Precision (Estimation) | 5“ |
| Unit | Degree/Gon |
| Display LCD 2 x | illuminated |
Inclination sensor
| Compensation | Auto vertical |
| Working range | ± 3‘ |
Level sensitivity
| Circular level | 8’/ 2 mm |
| Plate level | 30“/ 2 mm |
| Spirit level telescope | – |
| Plummet | Laser plummet |
| Operating temperature | -25 – +50 °C |
| Power | Li-Ion 3,7 V |
| System of protection | IP 55 |
| Dimensions | 190 x 155 x 345 mm |
| Weight | 5 kg |
