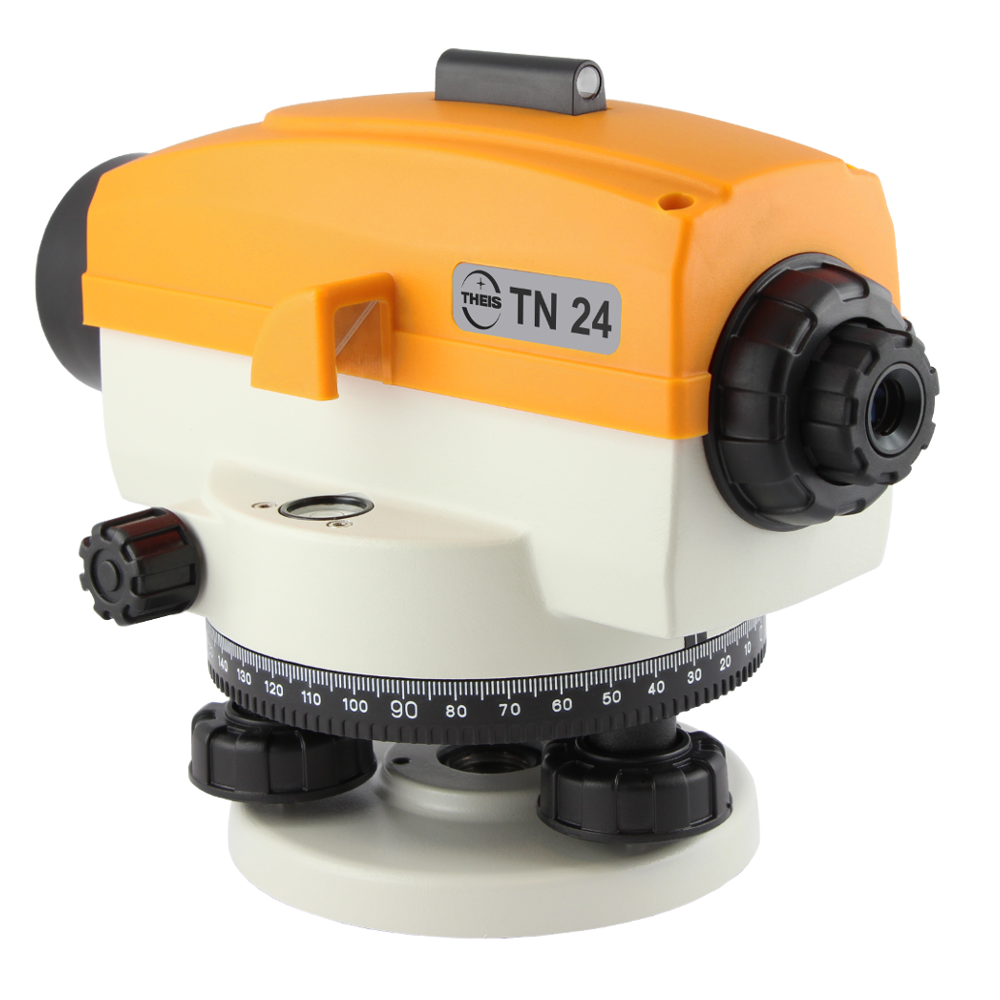

TN 24

TN 24

Automatic Engineers Level

Automatic engineers level for demanding work.

To the inquiry list

Gallery

TN 24
Delivery contents



Details

    • Air damping
    • 24-fold magnification
    • Earth work, concrete work and masonry
    • Gardening and landscaping
    • Machinery and plant construction
    • Construction level
    • Protective case
    • Plumb bob with cord
    • Screwdriver
    • Hex key

Specification

Telescope
Magnification 24 x
Ø Objective 36 mm
Shortest focus distance 1 m
Stadia ratio 100
Stadia constant 0
Compensator
Compensating range ± 15‘
Setting accuracy ± 0,5“
Standard deviation of 1 km double run ± 3,0 mm
Air damping
General
Sensitivity circular bubble 8‘ / 2 mm
Horizontal circle 1° / 1 gon
System of protection IP 55
Dimensions 205 x 130 x 140 mm
Weight 140 g
