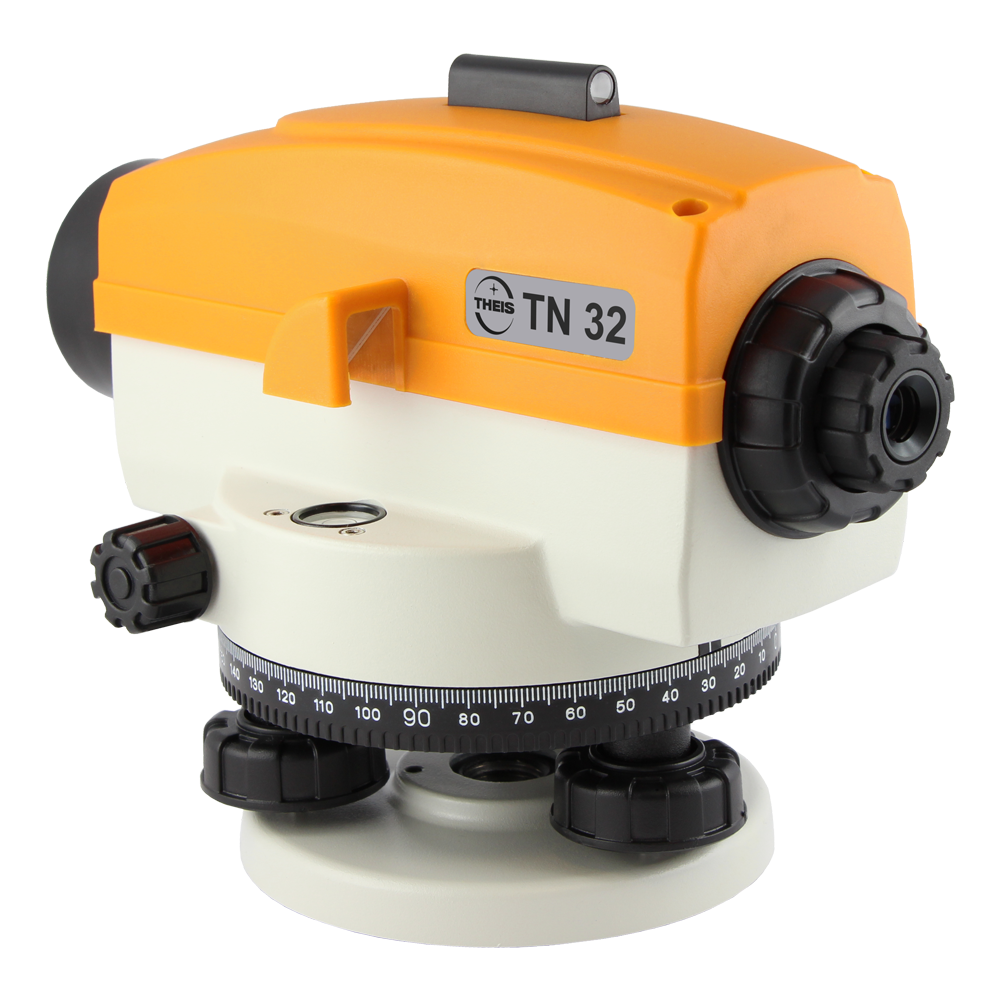

TN 32

TN 32

Automatic Engineers Level

Automatic engineers level for demanding work.

  Theis TN 32 product brochure

To download


TN 32
Delivery contents




Magnification 32 x
Ø Objective 36 mm
Shortest focus distance 1 m
Stadia ratio 100
Stadia constant 0
Compensating range ± 15‘
Setting accuracy ± 0,5“
Standard deviation of 1 km double run ± 2,0 mm
Air damping
Sensitivity circular bubble 8‘ / 2 mm
Horizontal circle 1° / 1 gon
System of protection IP 55
Dimensions 205 x 130 x 140 mm
Weight 130 g
