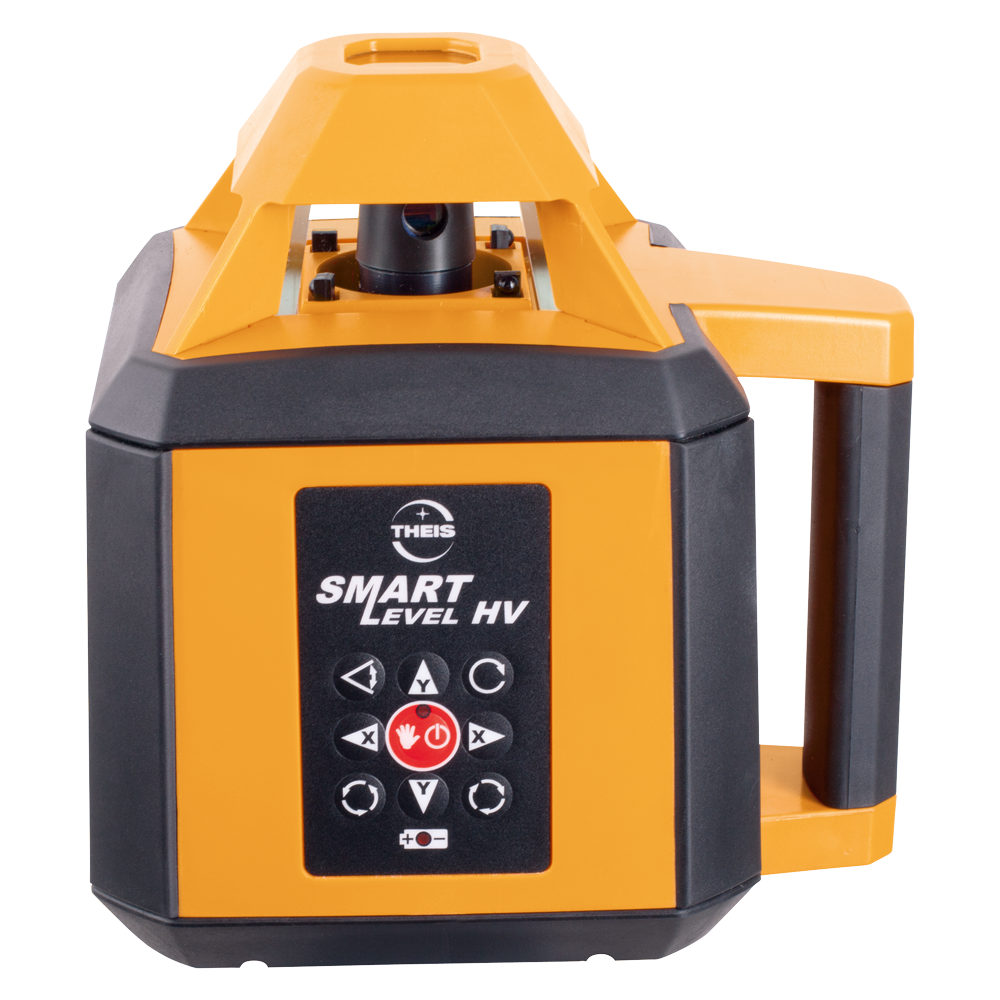

Smart Level HV
Rotating Laser Horizontal/vertical, manual slope
Fully automatic rotating laser for horizontal and vertical applications. Manual slope and plummet beam.
To the inquiry listTheis Smart Level product brochure
Gallery
Details
-
- Manual slope in two axes ± 10%
- Neatly arranged control panel, easy handling
- SCAN - and TI LT function
- Infrared remote control 360°
-
- Gardening and landscaping
- Structural and civil engineering
- Road construction
- Interior construction
- Alignment work
-
- SMART LEVEL HV
- Detector TE 6
- Protective case
- Accu/Charger
- Remote control
Specification
Laser Class | 2 |
Wave length | 635 nm |
Output | ≤ 1 mW |
Self-levelling range | ± 5° |
Levelling accuracy | ± 1 mm/10 m |
Speed step by step mode (rpm) | 0 – 600 |
Power source | NiMH 4,8 V; 4,0 Ah |
Scan-function | 15° – 110° |
Manual grade | ± 10% |
Running time | ≈ 25 h |
Charging time | ≈ 6 h |
Operating temperature | -10 – +50 °C |
System of protection | IP 64 |
Weight | ≈ 2 kg |
