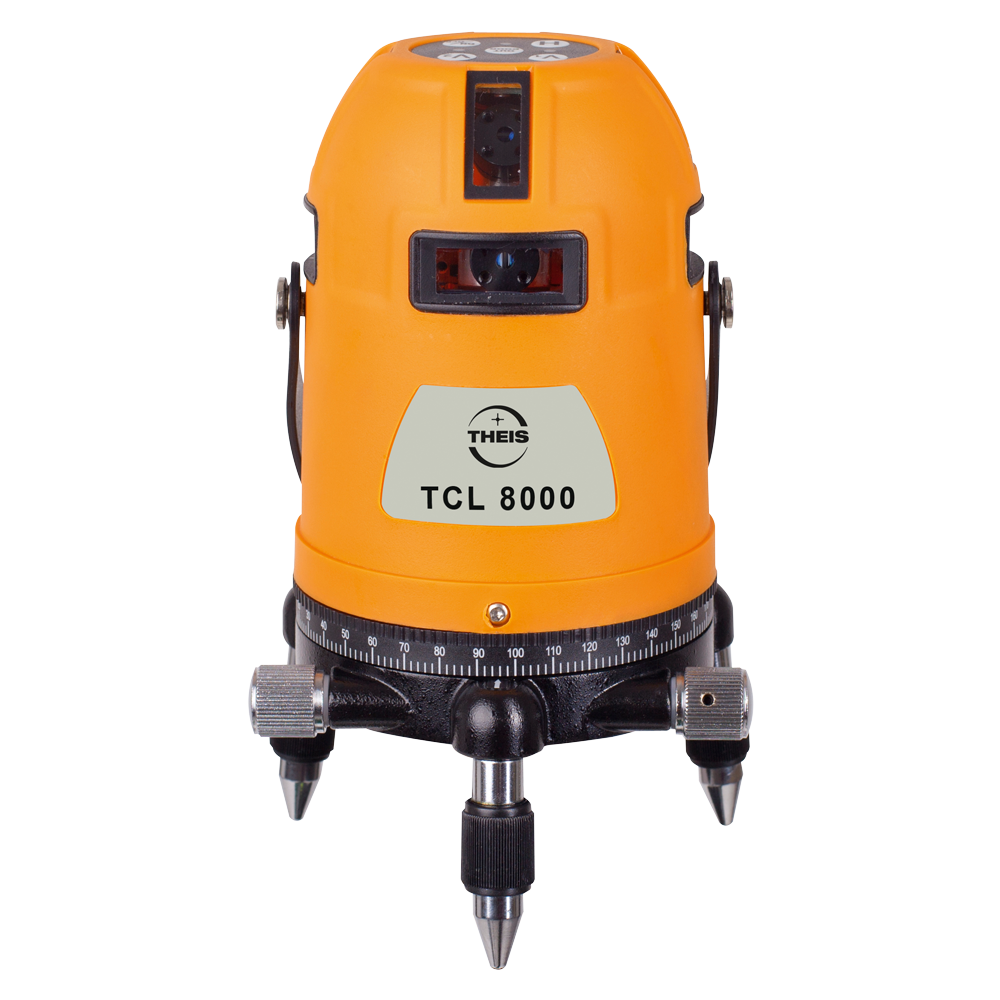

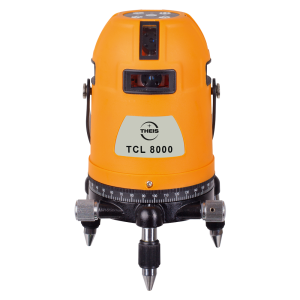

TCL-8000
Cross liner Motorised levell ing / Manual grade in two axes
Electronically cross line laser for horizontal and vertical applications’ with manual grade.
To the inquiry listTheis TCL Pocket product brochure
Gallery
Details
-
- Manual grade in two axes
- 4 horizontal and 4 vertical laser lines resp. -crosses, separately activatable; plummet beam
- Adjustable circle
- Endless fine-adjustment 360°
-
- Dry-, ceiling- and acoustic construction
- Fitting of windows and doors
- Tiling
- Hang-up of pictures and lamps
- Alignment of kitchens and shelves
- Alignment of drywalls
- Fixing of profiles and brackets
-

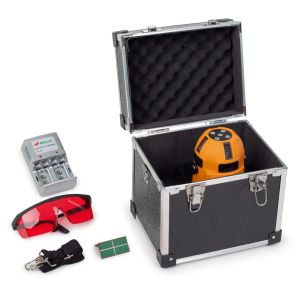

- Metal protective case with carrying belt
- Charging station
- Laser glasses
- Target plate
Specification
| Laser-Line/Spot | 8 /1 |
| Laser class /Output power | 2 / < 1 mW |
| Wave length | 635 nm |
| Self-levelling range | ± 3,5° |
| Grade manual | ± 5° |
| Range (radius) | 10 m |
| Accuracy | ± 1 mm / 5 m |
| Power source | NiMH 2,6 AH |
| Running time | 6 – 25 h |
| Charging time | ca. 7 h |
| Operating temperature | 0 – +40 °C |
| System of protection | IP 54 |
