Smart Level H

Smart Level H

Rotating Laser Horizontal

Fully automatic rotating laser for horizontal applications.

To the inquiry list

  Theis Smart Level product brochure

To download

Gallery

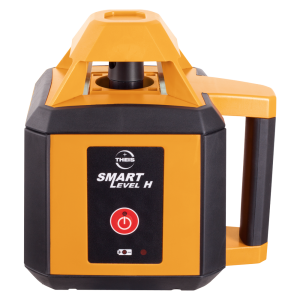

SMART LEVEL H

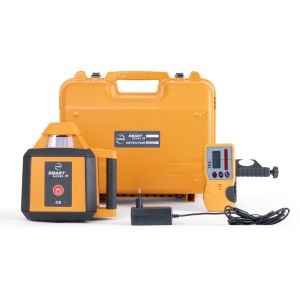

Delivery contents

Details

Specification

Laser Class 2
Wave length 635 nm
Output ≤ 1 mW
Self-levelling range ± 5°
Levelling accuracy ± 1 mm/10 m
Speed step by step mode (rpm) 600
Power source NiMH 4,8 V; 4,0 Ah
Scan-function
Manual grade
Running time ≈ 25 h
Charging time ≈ 6 h
Operating temperature -10 – +50 °C
System of protection IP 64
Weight ≈ 2 kg

Optional accessories
