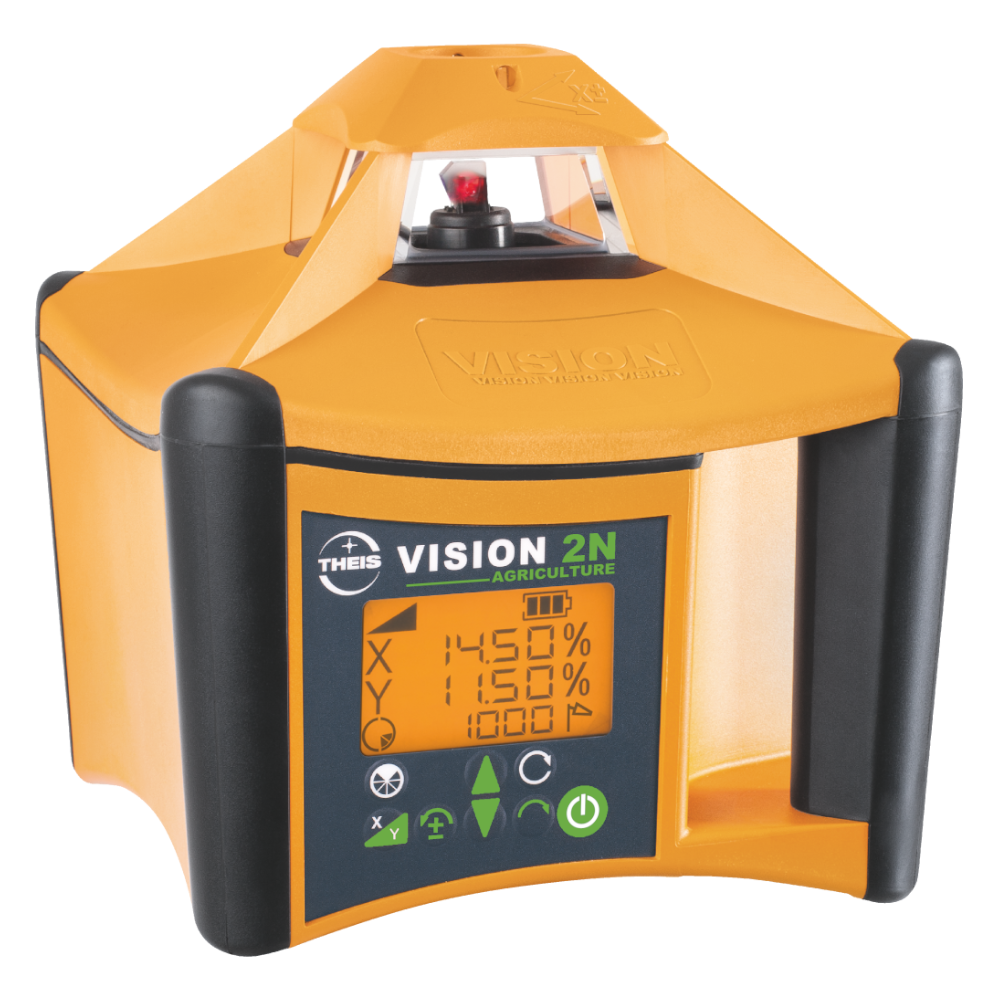

Vision 2N Agriculture
Horizontal dual grade laser with automatic adjustment
Horizontal dual grade laser with automatic monitoring and adjustment of the laser plane (Autoslope).
The laser has been specifically developed for agricultural applications and is equipped with electronic monitoring of the laser plane, which registers any change due to thermal or mechanical impact and immediately initiates adjustment.
TILT function becomes active in the event of major position changes of the laser. A fault message is displayed and measuring is suspended.
In addition, the laser features rotational speeddependent laser output to achieve maximum ranges.
To the inquiry listTheis VISION Agriculture product brochure
Gallery
Details
-
- Dual grade slope +/- 15 % with adjustment (Autoslope)
- TILT in levelling and grade
- Storage of last slope values
- Range up to 1000 m (radius)
- Operating temperature up to 60°C
- Illuminated LCD display
- Masking function of the laser beam
-
- Agriculture
- Gardening and landscaping
-

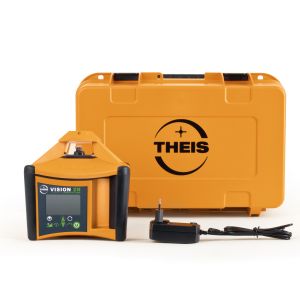

- VISION 2N Agriculture
- Accu/Charger
- Protective case
Specification
| Laser Class/High Power | 3R |
| Wave length | 635 nm |
| Output/High Power (option) | < 5 mW |
| Range (radius)/High Power (option) | up to 1000 m |
| Horizontal/Vertical | ✓ / – |
| Self-levelling range | ± 5° |
| Levelling accuracy | ± 1,5 mm/30 m |
| Grade range x,y | ± 15 % |
| Grade compensation | ✓ |
| Grade accuracy | ± 0,025 % |
| Align function, horizontal/vertical * | – |
| Speed step by step mode (rpm) | 0 – 1000 |
| Partial mask mode | ✓ |
| Windy function | ✓ |
| Display lighted | ✓ |
| Power source | NiMH+ or Alkaline “D“ cells |
| Running time (accu/battery) | ≈ 70 h / 120 h |
| Charging time | ≈ 6 h |
| Operating temperature | -15 ... +60 °C |
| System of protection | IP 67 |
| Weight | ≈ 3 kg |
