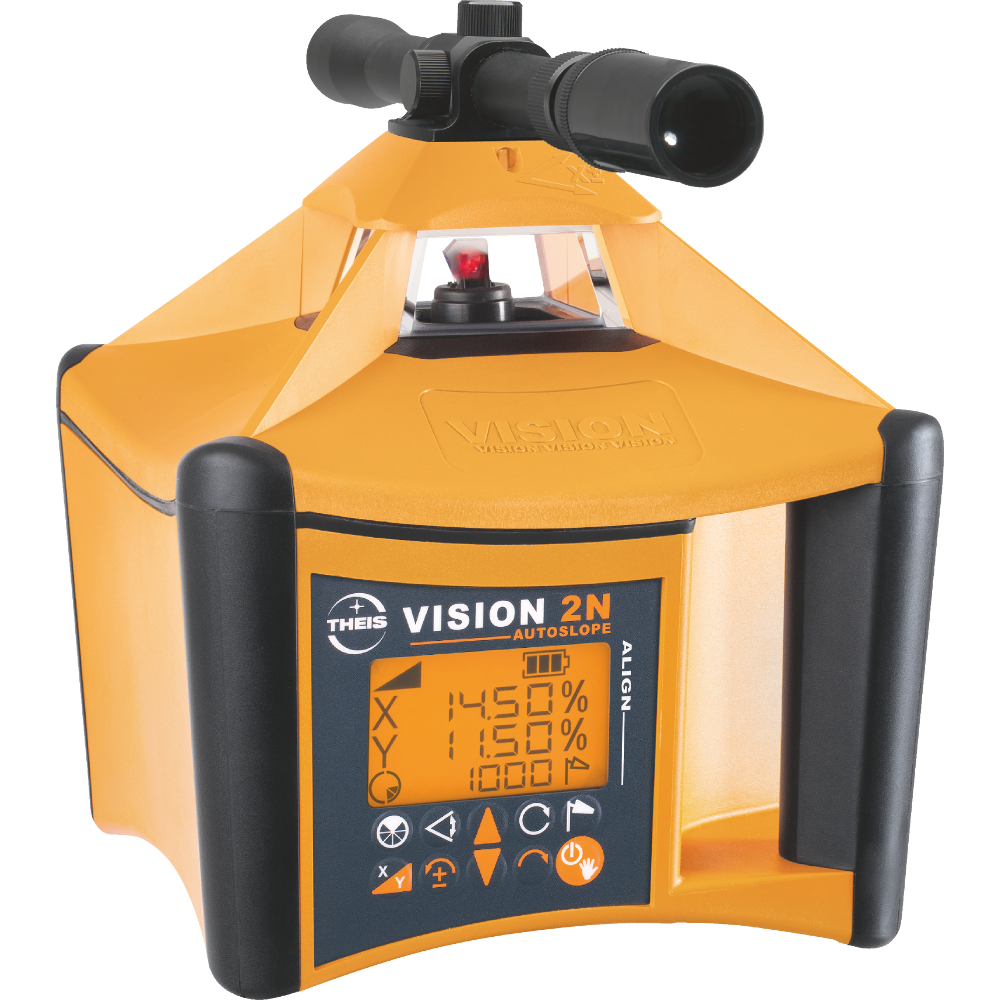

Vision 2N AUTOSLOPE ALIGN

Vision 2N AUTOSLOPE ALIGN

Horizontal/vertical dual grade laser with adjustment of the laserplane and aligning

Horizontal/vertical dual grade laser with receiver TE 90 ALIGN for automated alignment as well as automatic slope adjustment in two axes.The inclined plane will be monitored even without detector. An immediate adjustment will follow at thermal or mechanic changes. The laser also has the same functional features as the VISION 2N AUTOSLOPE.

  Theis VISION product brochure

To download

Gallery

Vision 2N
TE 90 ALIGN Detector

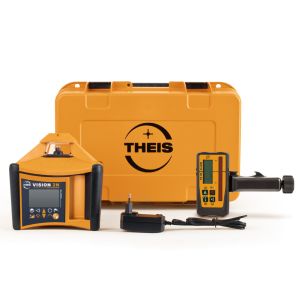

Delivery contents
Align-Horizontal
Align-Vertical
Rugged design for exacting requirements in construction
More sustainability by long-life Eneloop™ high-performance batteries
Estremely easy to use by self-explanatory keypad and illuminated display
Comprehensive service due to 3-year warranty – Quick access to product information via QR code

Details

    • Simple to operate and very fast target acquisition
    • Automatic slope adjustment up to +/- 15%
    • Automatic alignment function
      Search range up to 9°
    • Continuous tracking of the laser beam when there is a change in the receiver position
    • Range > 80 m (In favourable conditions, up to 200 m possible)
    • Other characteristics as the Vision 2N Autoslope
    • Alignment work
    • Slope determination
    • Gardening and landscaping
    • Structural and civil engineering
    • Road construction
    • VISION 2N AUTOSLOPE ALIGN
    • TE 90 ALIGN Detector
    • Accu/Charger
    • Protective case

Specification

Laser Class/High Power (option) 2/3R
Wave length 635 nm
Output/High Power (option) < 1 mW/< 5 mW
Range (radius)/High Power (option) ca. 300/750 m
Horizontal/Vertical ✓ / ✓
Self-levelling range ± 5°
Levelling accuracy ± 1,5 mm/30 m
Grade range x,y ± 10 %
Grade compensation
Grade accuracy ± 0,025 %
Align function, horizontal/vertical *
Range Align * > 80 m
Speed step by step mode (rpm) 0 – 1000
Scan-function 10° – 80°
Partial mask mode
Windy function
Display lighted
Power source NiMH+ or Alkaline “D“ cells
Charging time ≈ 6 h
Operating temperature -15 ... +50 °C
System of protection IP 67
Weight ≈ 3 kg

* in connection with TE 90 Align
