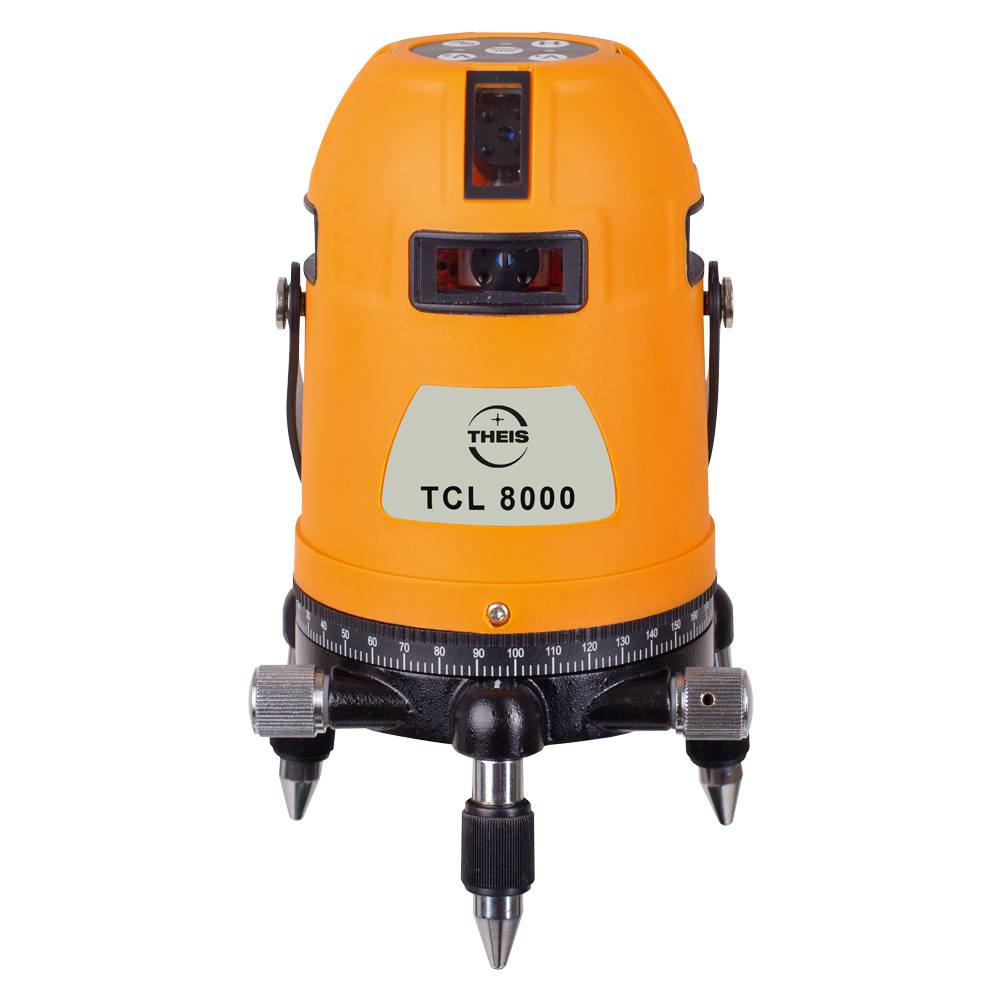

TCL 8000

TCL 8000

Cross liner Motorised levell ing / Manual grade in two axes

Electronically cross line laser for horizontal and vertical applications’ with manual grade.

To the inquiry list

  Theis TCL Pocket product brochure

To download

Gallery

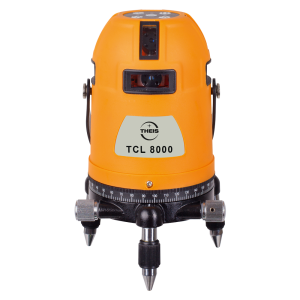

TCL 8000

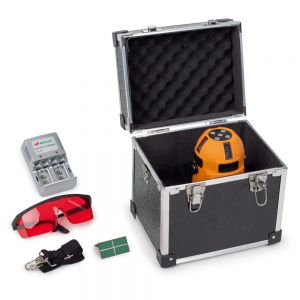

Delivery contents

Details

    • Manual grade in two axes
    • 4 horizontal and 4 vertical laser lines resp. -crosses, separately activatable; plummet beam
    • Adjustable circle
    • Endless fine-adjustment 360°
    • Dry-, ceiling- and acoustic construction
    • Fitting of windows and doors
    • Tiling
    • Hang-up of pictures and lamps
    • Alignment of kitchens and shelves
    • Alignment of drywalls
    • Fixing of profiles and brackets
    • Metal protective case with carrying belt
    • Charging station
    • Laser glasses
    • Target plate

Specification

Laser-Line/Spot 8 /1
Laser class /Output power 2 / < 1 mW
Wave length 635 nm
Self-levelling range ± 3,5°
Grade manual ± 5°
Range (radius) 10 m
Accuracy ± 1 mm / 5 m
Power source NiMH 2,6 AH
Running time 6 – 25 h
Charging time ca. 7 h
Operating temperature 0 – +40 °C
System of protection IP 54
