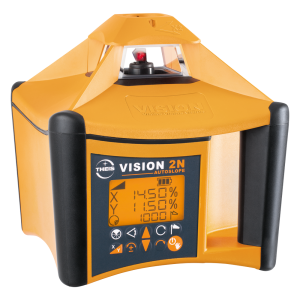

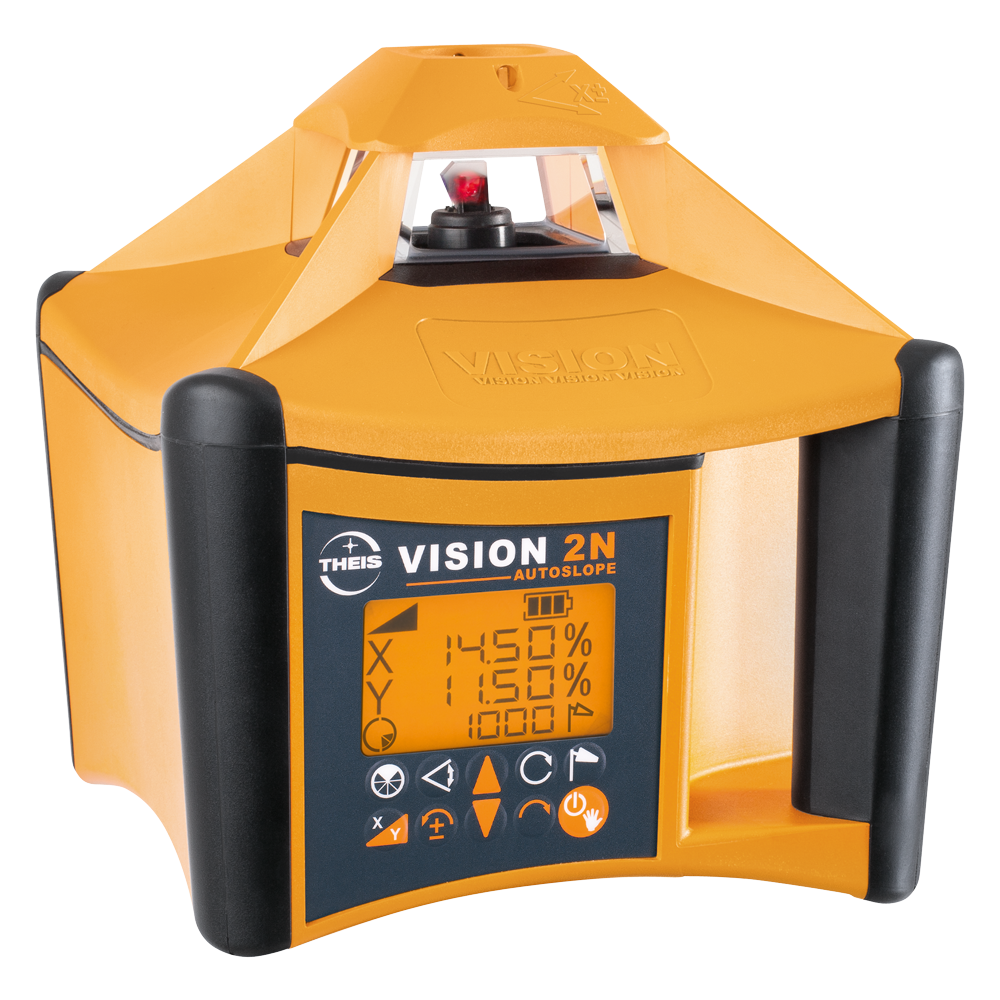

Vision 2N Autoslope

Vision 2N Autoslope

Horizontal dual grade laser with automatic adjustment

Horizontal dual grade laser with automatic monitoring and adjustment of the laserplane (Autoslope).

The inclined plane will permanently be monitored electronically. An immediate adjustment will follow at mechanic or thermal changes.

TILT-function will be activated at rough differences so the measurement will be stopped and error message will be shown on the display.


To the inquiry list

  Theis VISION product brochure

To download


Vision 2N Autoslope

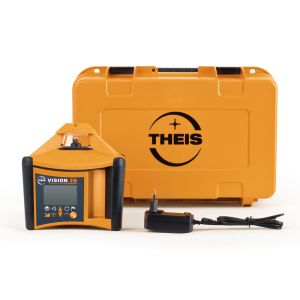

Delivery contents

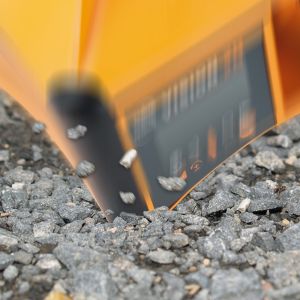

Rugged design for exacting requirements in construction

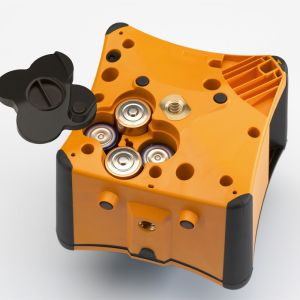

More sustainability by long-life Eneloop™ high-performance batteries

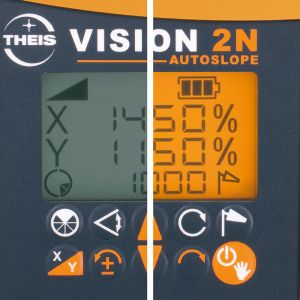

Estremely easy to use by self-explanatory keypad and illuminated display
Comprehensive service due to 3-year warranty – Quick access to product information via QR code



Laser Class/High Power (option) 2/3R
Wave length 635 nm
Output/High Power (option) < 1 mW/< 5 mW
Range (radius)/High Power (option) ca. 300/750 m
Horizontal/Vertical ✓ / –
Self-levelling range ± 5°
Levelling accuracy ± 1,5 mm/30 m
Grade range x,y ± 15 %
Grade compensation
Grade accuracy ± 0,025 %
Align function, horizontal/vertical *
Speed step by step mode (rpm) 0 – 1000
Scan-function 10° – 80°
Partial mask mode
Windy function
Display lighted
Power source NiMH+ or Alkaline “D“ cells
Running time (accu/battery) ≈ 70 h / 120 h
Charging time ≈ 6 h
Operating temperature -15 ... +50 °C
System of protection IP 67
Weight ≈ 3 kg
* in connection with TE 90 Align

Optional accessories
