Vision H

Vision H

Horizontal single - button laser

Horizontal laser, featuring only one button – operating errors are positively excluded.

To the inquiry list

  Theis VISION product brochure

To download

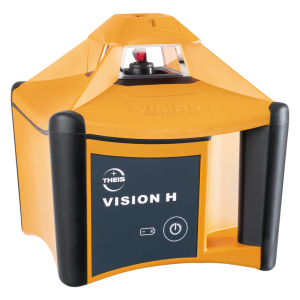

Vision H

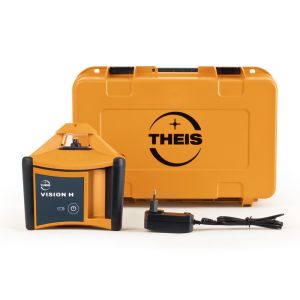

Delivery contents
Rugged design for exacting requirements in construction
More sustainability by long-life Eneloop™ high-performance batteries
Estremely easy to use by self-explanatory keypad and illuminated display
Comprehensive service due to 3-year warranty – Quick access to product information via QR code



Laser Class/High Power (option) 2/3R
Wave length 635 nm
Output/High Power (option) < 1 mW/< 5 mW
Range (radius)/High Power (option) ca. 300/750 m
Horizontal/Vertical ✓ / –
Self-levelling range ± 5°
Grade range x,y
Grade compensation
Levelling accuracy ± 1,5 mm/30 m
Align function, horizontal/vertical *
Speed step by step mode (rpm) 600
Partial mask mode
Windy function
Display lighted
Power source NiMH+ or Alkaline “D“ cells
Charging time ≈ 6 h
Operating temperature -15 ... +50 °C
System of protection IP 67
Weight ≈ 3 kg
* in connection with TE 90 Align

Optional accessories
