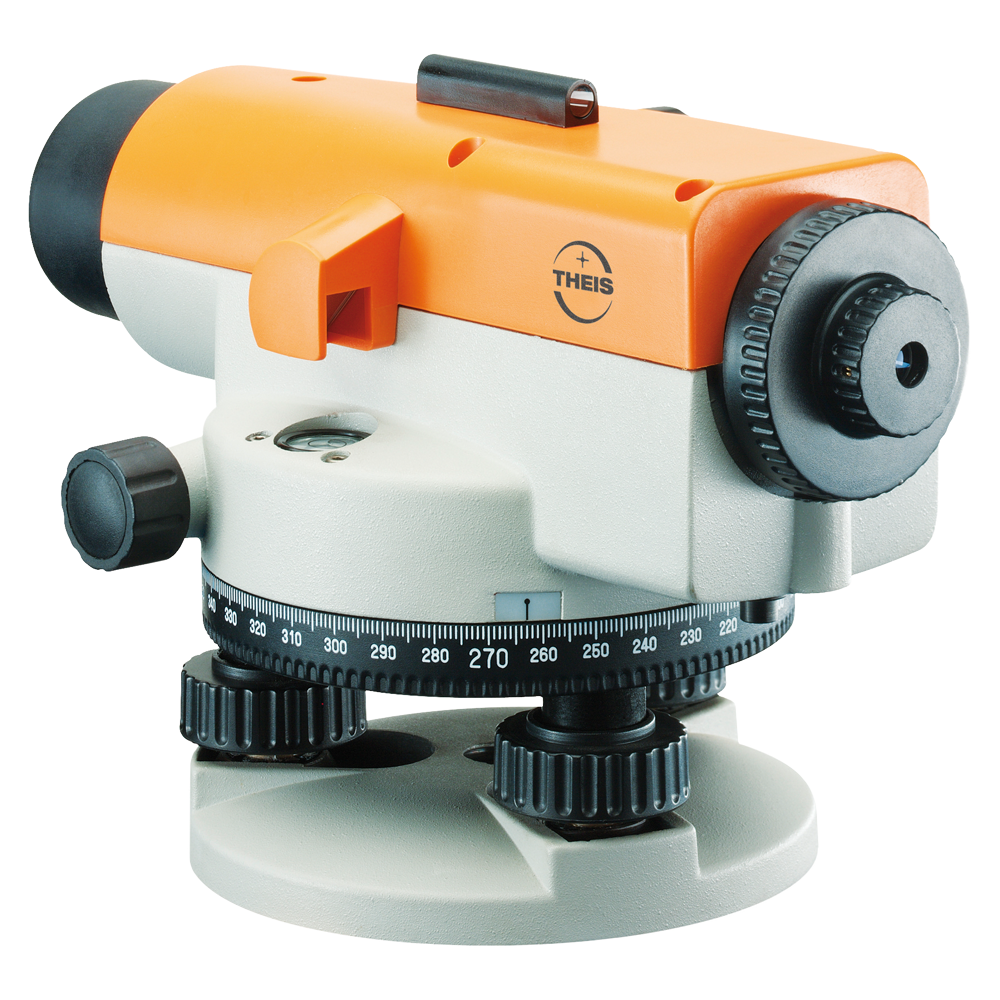

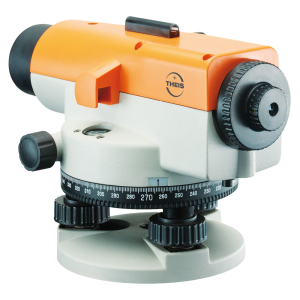

AN 32

AN 32

Automatic Engineers Level

Automatic engineers level for demanding work.

Auf die Anfrageliste

  Theis Levels product brochure

To download

Gallery

AN 32

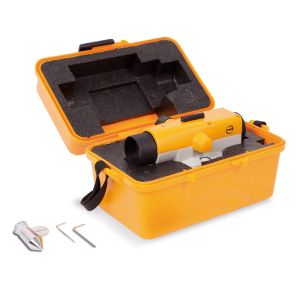

Delivery contents

Details

Specification

Telescope
Magnification 32 x
Ø Objective 40 mm
Shortest focus distance 1,0 m
Stadia ratio 100
Stadia constant 0
Compensator
Compensating range ± 15‘
Setting accuracy ± 0,3“
Standard deviation of 1 km double run ± 1,0 mm
Air damping
General
Sensitivity circular bubble 8‘ / 2 mm
Horizontal circle 1° / 1 gon
System of protection IP 55
Dimensions 210 x 135 x 140 mm
Weight 1,5 kg
