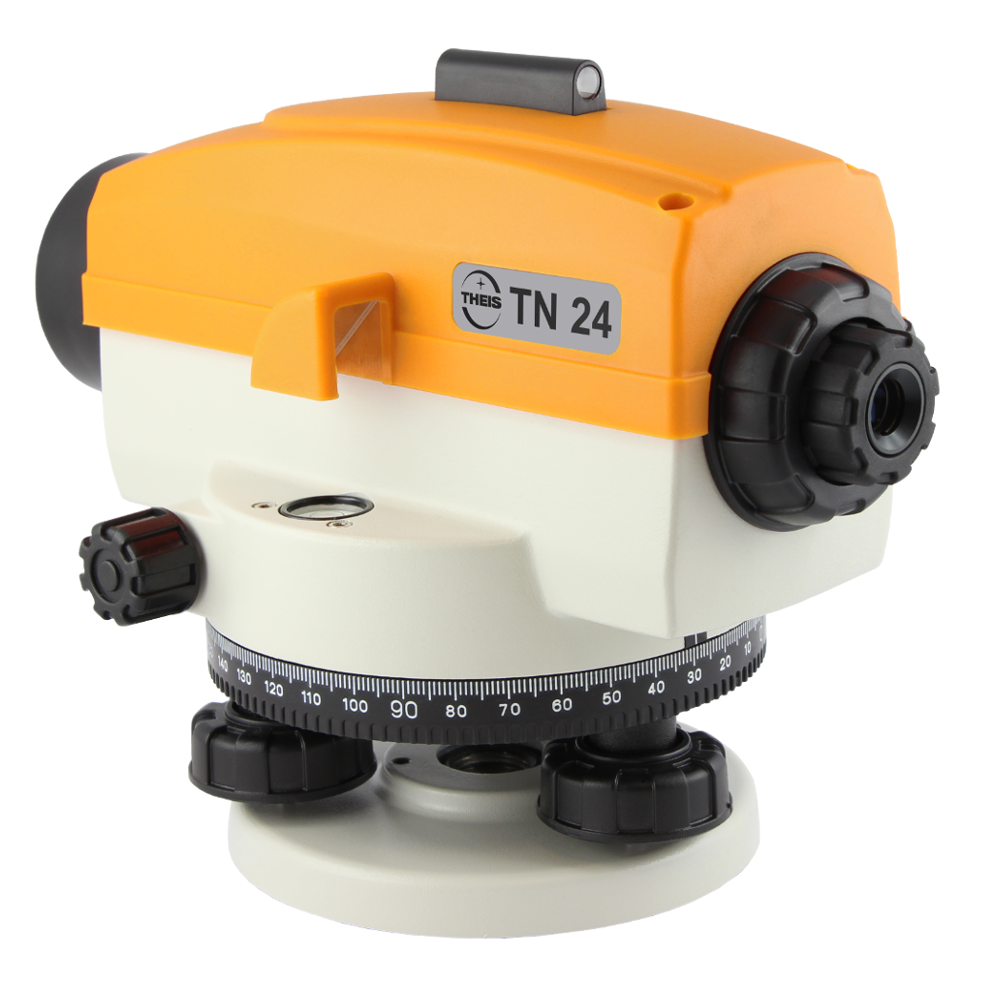

TN 24
Gallery
Details
-
- Air damping
- 24-fold magnification
-
- Earth work, concrete work and masonry
- Gardening and landscaping
- Machinery and plant construction
-
- Construction level

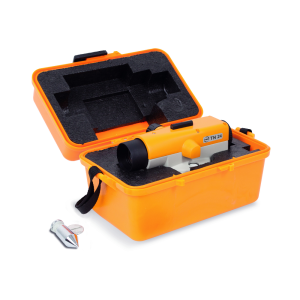

- Protective case
- Plumb bob with cord
- Screwdriver
- Hex key
Specification
Telescope
| Magnification | 24 x |
| Ø Objective | 36 mm |
| Shortest focus distance | 1 m |
| Stadia ratio | 100 |
| Stadia constant | 0 |
Compensator
| Compensating range | ± 15‘ |
| Setting accuracy | ± 0,5“ |
| Standard deviation of 1 km double run | ± 3,0 mm |
| Air damping | ✓ |
General
| Sensitivity circular bubble | 8‘ / 2 mm |
| Horizontal circle | 1° / 1 gon |
| System of protection | IP 55 |
| Dimensions | 205 x 130 x 140 mm |
| Weight | 140 g |
