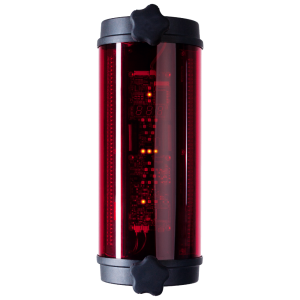

TBE-12N

TBE-12N

Machine detector

The TBE-12N is a robust receiver designed for use on construction machines. In conjunction with a rotation laser, the manual machine control system is suitable for both: Grading and excavation work. The slope compensation implemented in the TBE-12N facilitates levelling work by compensating for the sloped positions of the excavator arm.

To the inquiry list

  Theis TBE-12N product brochure

To download

Gallery

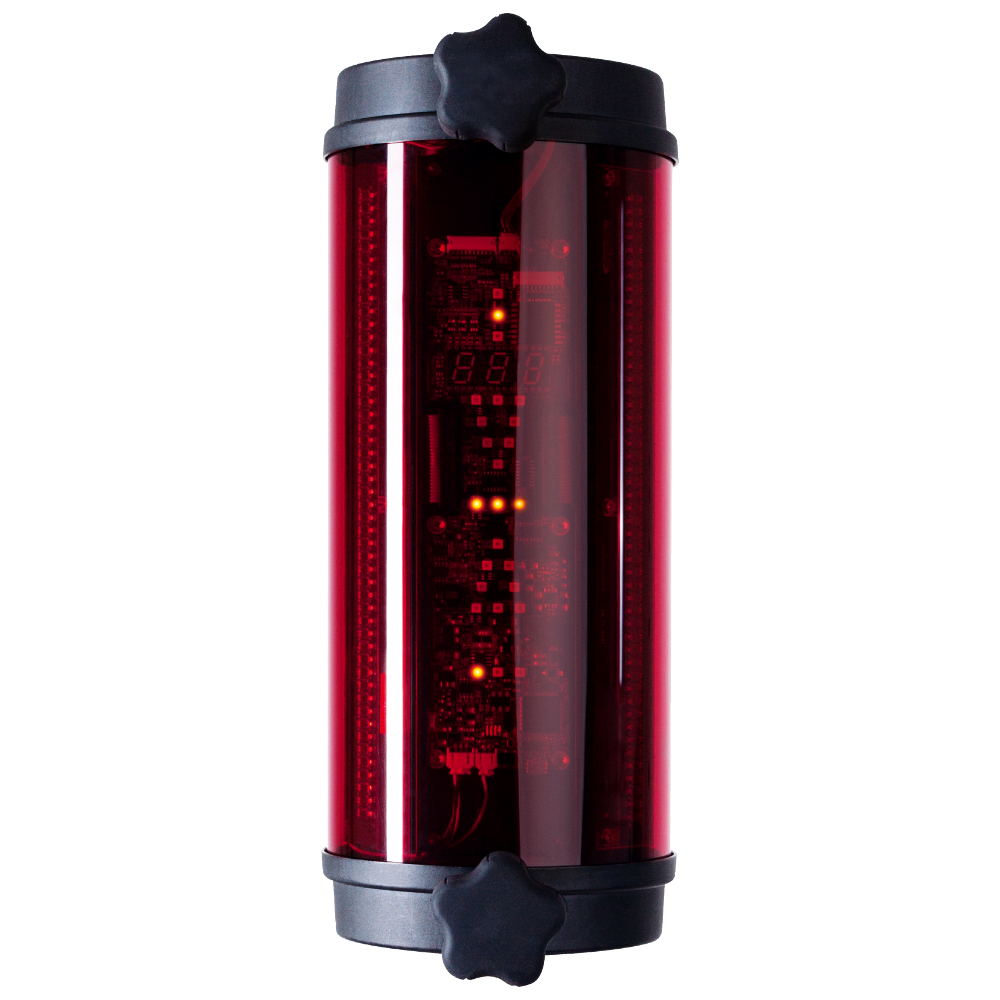

TBE-12N

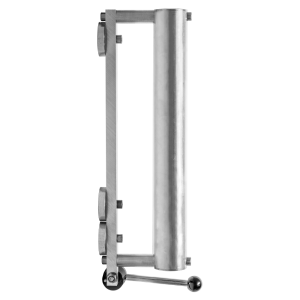

Magnetic bracket TBE-12N

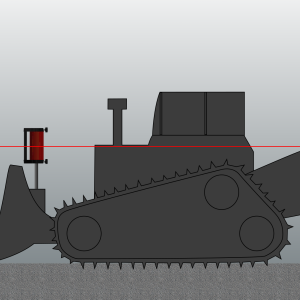

Application standard operation

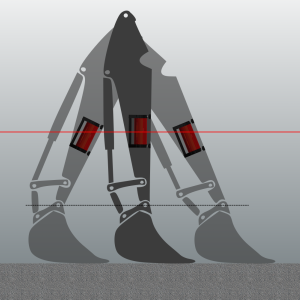

Application slope-compensation

Details

Specification

Reception angle ± 360°
Reception range 250 mm
Range (Laser Standard/High Power) ~ 300 / 800 m
Accuracy fine / wide ± 2 /10 / 20 / 50 mm
Acoustic
Display Maxi-LED
Power source NiMH; 4,5 Ah
Operating time ≈ 30 h
Operating temperature -15 – +60 °C
System of protection IP 67
Dimensions Ø 130 x 335 mm
Weight ≈ 3,1 kg
Mounting Bracket/magnetic
