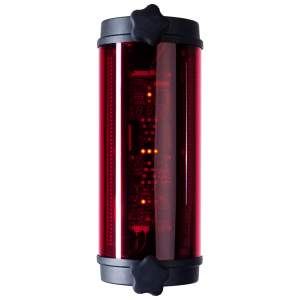

TBE-12N
Machine detector

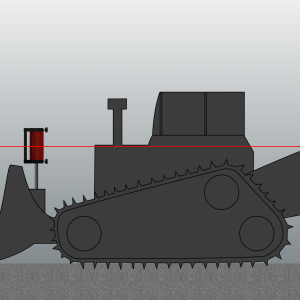

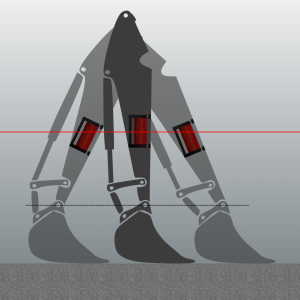

The TBE-12N is a robust receiver designed for use on construction machines. In conjunction with a rotation laser, the manual machine control system is suitable for both: Grading and excavation work. The slope compensation implemented in the TBE-12N facilitates levelling work by compensating for the sloped positions of the excavator arm.
To the inquiry listTheis TBE-12N product brochure
Gallery
Specification
| Reception angle | ± 360° |
| Reception range | 250 mm |
| Range (Laser Standard/High Power) | ~ 300 / 800 m |
| Accuracy fine / wide | ± 2 /10 / 20 / 50 mm |
| Acoustic | – |
| Display | Maxi-LED |
| Power source | NiMH; 4,5 Ah |
| Operating time | ≈ 30 h |
| Operating temperature | -15 – +60 °C |
| System of protection | IP 67 |
| Dimensions | Ø 130 x 335 mm |
| Weight | ≈ 3,1 kg |

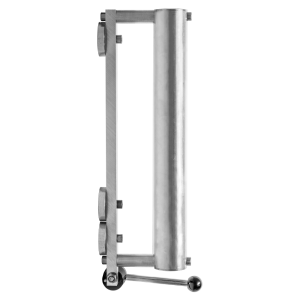

| Mounting | Bracket/magnetic |
