TKL 7

TKL 7

Pipe Laser

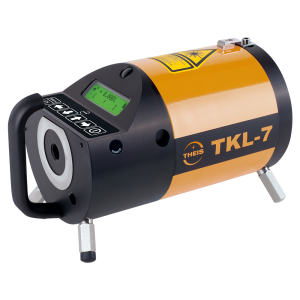

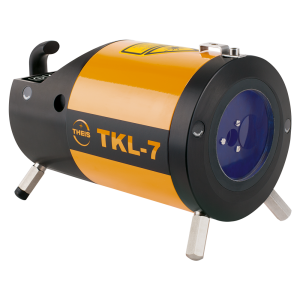

The fully automatic Theis pipe laser TKL-7 with green laser diode is a quality product of the highest precision. The green laser beam is optimally visible, even at longer distances.

The power of the laser beam can be adjusted in the menu if the beam is too bright for an application.

The optional available remote control simplifies the alignment of the laser in the pipe.

  Theis TKL 7 product brochure

To download

Gallery

TKL 7
TKL 7

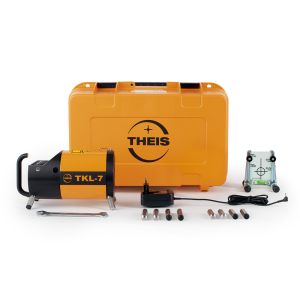

Delivery contents

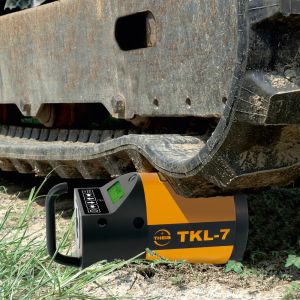

Extremely sturdy metal housing, nitrogen filled, absolutely watertight

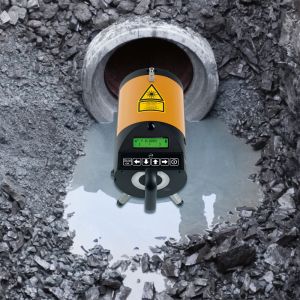

Extremely sturdy metal housing, nitrogen filled, absolutely watertight

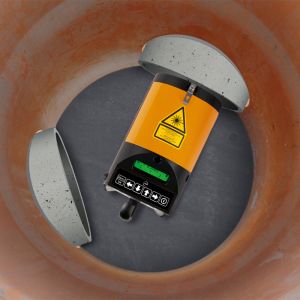

Compact dimensions

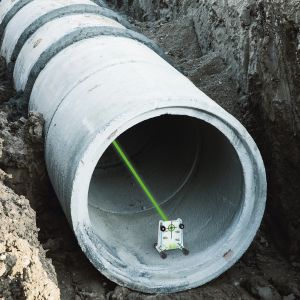

Excellent visibility of the green laser beam with standard or high power laser diode

Details

    • Excellent visibility of the green laser beam with standard or high power laser diode
    • Extremely sturdy metal housing, nitrogen filled, absolutely watertight
    • Compact dimensions
    • Exact motorized alignment
    • Easy slope adjustment from - 10 % to + 40 %
    • Simple targeting at the laser; targeting optionally by remote control (option)
    • Rechargeable lithium-ion batteries for short charging times and long operating hours
    • Canal construction
    • Pipelaying
  • STANDARD

    • TKL-7 STANDARD / TKL-7 HIGH POWER
    • 3 leg sets
    • Accu/Charger
    • Target
    • Protective case
    • Wrench

    OPTIONAL

    • Füße und Zieltafel für Rohr-Ø (400/500) Feet and target for pipe Ø (400/500)
    • FB-7-Fernbedienung · FB-7 Remotecontrol
    • Dritter Fuß · Third foot

Specification

  STANDARD HIGH POWER
Laser class 2 3R
Wave length 520 nm
Output < 1 mW < 5 mW
Self-levelling range -5 ... +40 %
Grade -10 ... +40%
Accuracy ± 5 mm/100 m
Resolution display 0,001%
Banking compensation +/- 4 °
Direction setting range +/- 5°
Power source Lithium-ion accu
Running time ≈ 50 h ≈ 34 h
Charging time ≈ 5 h
Operating temperature -10 ... +50 °C
System of protection IP 68
Weight ≈ 3,0 kg
Dimensions Ø 130 x 260 mm
Range < 200 m < 500 m
Range FB-7 From front 150 m, from behind 18 m
